Figure 2.

thumbnail

Télécharger l'image originale

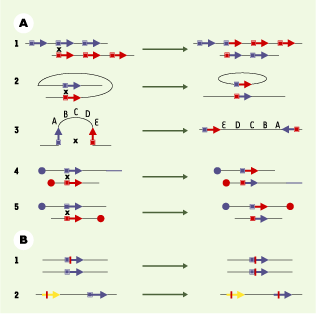

Instabilité génétique associée à un excès de recombinaison homomogue. A. Réarrangements chromosomiques résultant de crossing-over [39]. 1. Crossing-over inter-chromosomique ou entre chromatides sœurs décalées aboutissant à une amplification et à une délétion génique. 2. Crossing-over intrachromatidien entre séquence en répétition directe aboutissant à l’excision du fragment interne. 3. Crossing-over entre répétition en orientation inverse aboutissant à l’inversion du fragment interne. 4-5. Crossing-over interchromosomiques : selon l’orientation par rapport au centromère, les produits seront une translocation (4) ou un chromosome dicentrique et un chromosome acentrique (5). B. Conversion génique entre (1) deux hétéro-allèles aboutissant à une perte d’hétérozygotie ou entre (2) un pseudogène (flèche jaune) et un gène (flèche bleue), aboutissant à l’inactivation du gène. Les mutations transférées sont représentées par le trait rouge.
